Description

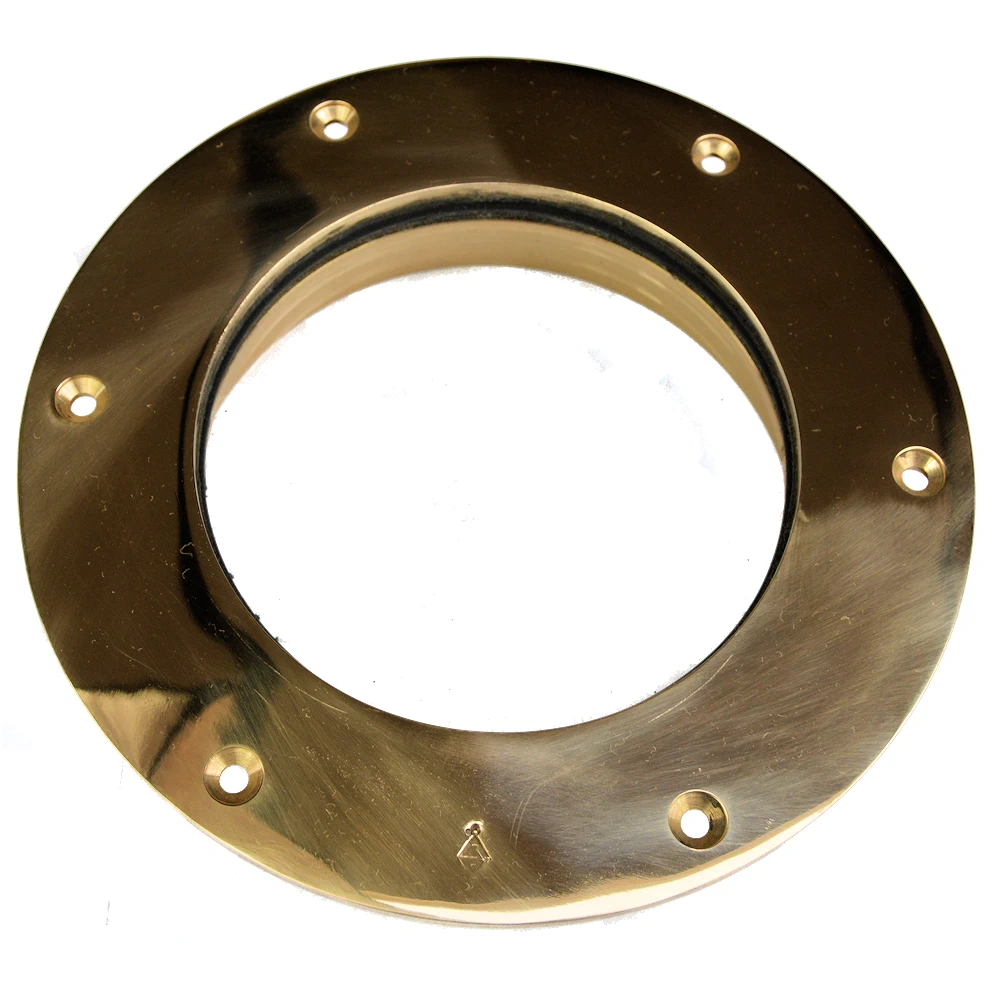

These heavy duty Davey portlights are traditionally hand made in England to the highest quality and CE approved for upper hull areas and cabin sides. Supplied with outside finishing rings they are fitted with toughened glass and have a polished finish. Glass diameter 100mm. Flange diamter 167mm. Spigot diameter 123mm. Spigot depth 35mm.
| ROUND FIXED POLISHED BRONZE PORTLIGHT | ||||
|---|---|---|---|---|
| GUNMETAL | GLASS DIAMETER | FLANGE DIAMETER | SPIGOT DIAMETER | SPIGOT DEPTH |
| 3036/GM/100 | 4″ 100MM | 6 9/16″ 167MM | 4 7/8″ 123MM | 1 3/8″ 35MM |
| 3036/GM/125 | 5″ 125MM | 7 5/8″ 195MM | 5 3/4″ 146MM | 1 3/4″ 44MM |
| 3036/GM/150 | 6″ 150MM | 9 1/16″ 230MM | 6 7/8″ 175MM | 1 3/4″ 44MM |
| 3036/GM/200 | 8″ 200MM | 12″ 310MM | 9 1/2″ 243MM | 2″ 52MM |
