Description

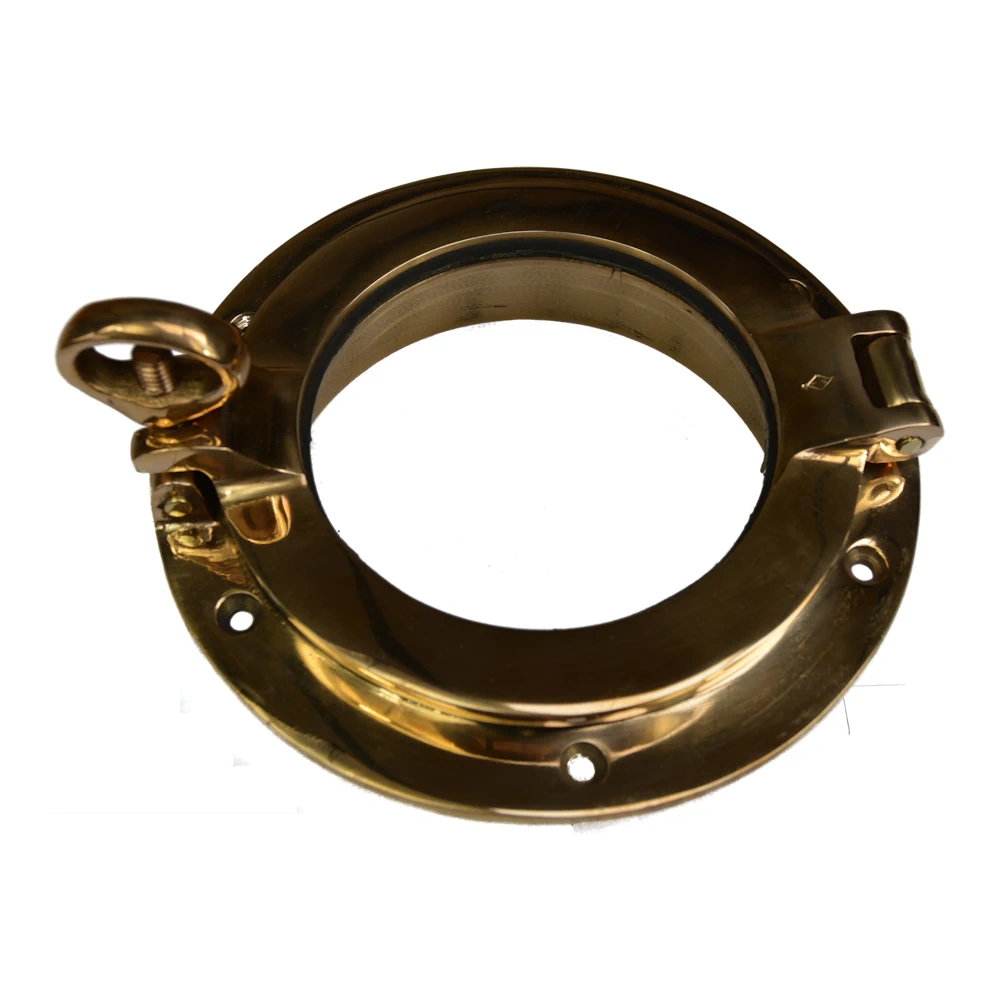

These heavy duty Davey portlights are traditionally hand made in England to the highest quality and CE approved for upper hull areas and cabin sides. Supplied with outside finishing rings they are fitted with toughened glass and have a polished finish.
| Gunmetal | Glass Diameter | Flange Diameter | Spigot Diameter | Spigot Depth |
|---|---|---|---|---|
| 3035/GM/080 | 84mm (3 1/4″) | 150mm (6″) | 112mm (4 3/8″) | 38mm (1 1/2″) |
| 3035/GM/100 | 100mm (3 1/4″) | 170mm (6 1/2″) | 134mm (5 1/4″) | 34mm (1 3/8″) |
| 3035/GM/125 | 125mm (3 1/4″) | 195mm (7 3/4″) | 146mm (5 3/4″) | 44mm (1 3/4″) |
| 3035/GM/150 | 150mm (3 1/4″) | 230mm (9 1/16″) | 175mm (6 7/8″) | 44mm (1 3/4″) |
| 3035/GM/200 | 200mm (3 1/4″) | 310mm (12″) | 243mm (9 1/2″) | 52mm (2″) |
