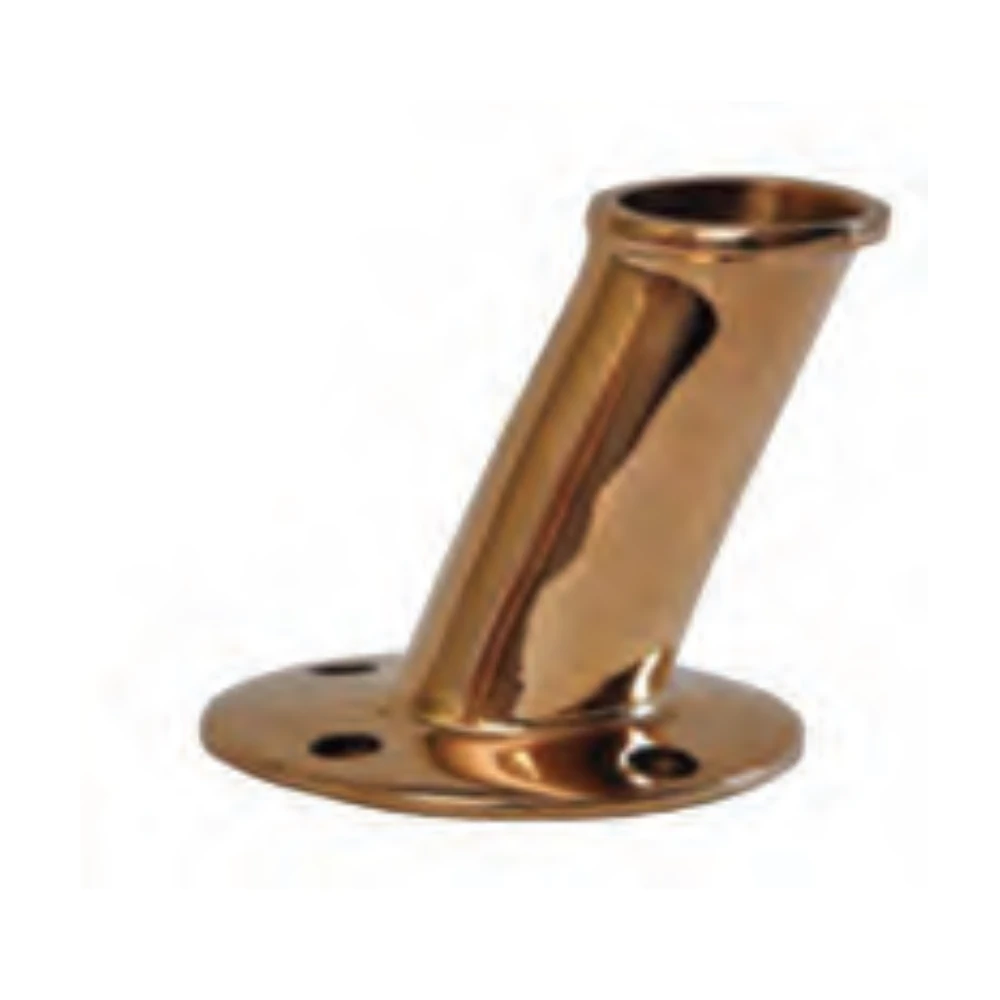

Description
| Gunmetal | Staff Dia | Base Dia | Height | Fastenings |
|---|---|---|---|---|
| 9571/GM/019 | 3/4″ 19mm | 2 1/4″ 58mm | 2 1/2″ 65mm | 4 off No 8 |
| 9571/GM/025 | 1″ 25mm | 2 1/22 63mm | 2 3/4″ 70mm | 4 off No 8 |
| 9571/GM/031 | 1 1/4″ 31mm | 3″ 75mm | 2 3/4″ 70mm | 4 off No 10 |
| 9576/GM/031 | 1 1/4″ 31mm | 3 1/2″ 90mm | 3 1/42 82mm | 4 off No 10 |
Note: The 9576 is a heavy duty fitting with a greater degree of rake being 30 degrees from vertical compared to the 9571 which is 20 degrees from vertical.
