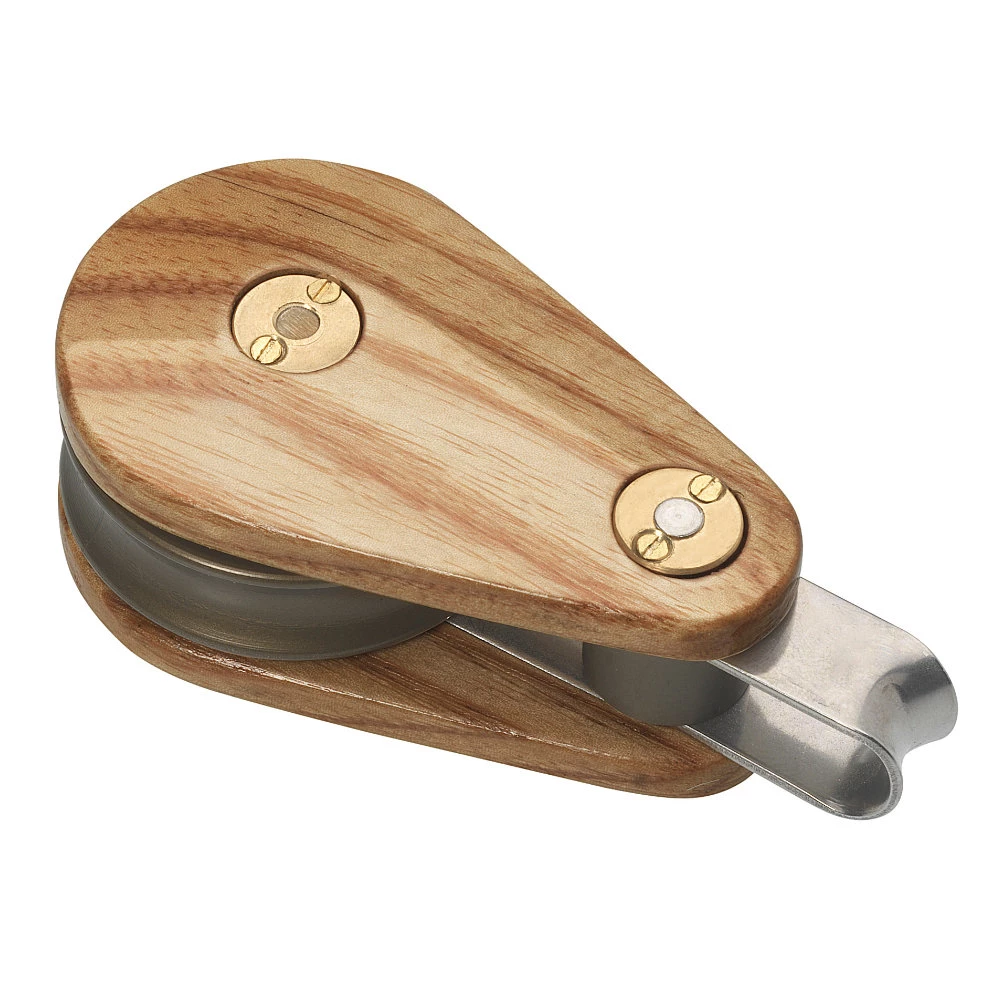

Wooden Block 45mm Single Fixed Eye

Delrin Balls
Ball Bearing Sheave

Combining high performance engineering and classic design, our range of wooden blocks has been designed for mariners who appreciate elegance and want technical excellence. The range has been named in honour of the flagship of the Royal Navy – the HMS Victory.

£10.00

SKUBT/50045Categories ,

Description

Crafted by sailors for sailors, the Victory blocks are manufactured in the UK from traditional ash wood, with a high gloss marine varnish finish. Victory blocks are bolted together and can be unfastened for servicing and re-finishing.

The Victory collection of wooden blocks not only look good, but are highly durable and designed to withstand many years of use in harsh marine environments. The sleek wooden plates conceal the modern technical working of Barton?s proven high performance engineering, with Delrin ball bearings, Torlon needle bearings, gun metal coloured sheave and solid brass fittings.

Download the factsheet

Additional information

Size

Block Type

Fixed Eye

No. of Sheaves

Single

Bearing Type

Delrin Balls

Sheave Size

45mm x 14mm (1 3/4" x 35/64")

Max rope diameter

10mm (25/64")

SWL

350kg (771lbs)

Break load

700kg (1543lbs)

Max rolling load

270kg (595lbs)

Brand

Barton
